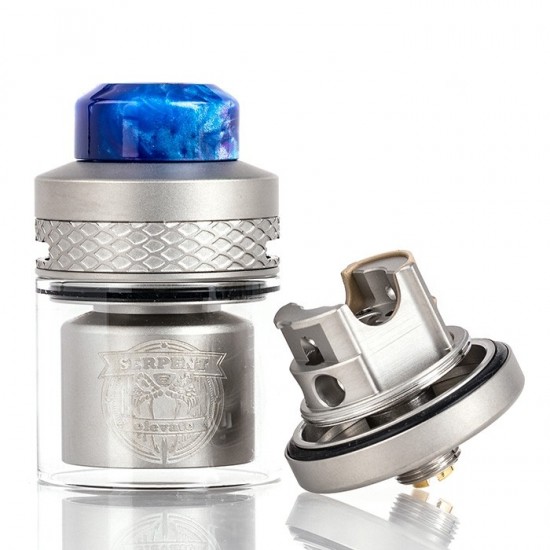

THE WOTOFO SERPENT ELEVATE RTA TANK is the latest from the Serpent Series, a collaboration with well known and respected YouTube reviewer Suck My Mod. This latest Serpent brings a myriad of cool features from the postelss single coil deck, top airflow design and the most advanced air distribution structure whilst combining its past heritage with current styling trends.
The Serpent Elevate RTA utilises an advanced surface treatment giving it that high-end look with the airflow control ring engraved with snake scale. Cleverly this engraving serves as decoration but more importantly to give the user a firm a grip, or 'knurling' to adjust the precise top airflow control ring.
Top airflow design is commonly perceived as the most effective way to prevent fluid leakage. The Serpent Elevate RTA incorporates this with two wide air intake slots, but it gets even better the further oxygen is sucked within.
The Serpent Elevate RTAprevails in flavour production, in that it has a scientific based air distribution system. The air comes in from the top air inlets and travels along the wall of the air pipe and vapourisation chamber. Once here the air enters two big side holes located at the deck, merging at the centre of the deck bottom going directly onto the coil. Additionally, there are two relatively small holes there to let air in towards the sides of the coil.
The Serpent's single coil build deck is elevated (hence the name) by a central post from the tank base to shorten the vapour delivery path, but cleverly increases the fluid capacity over similar sized RTA's. Furthermore, there are four terminals designed into the postless deck to allow different coil positions, making the building process easier and intuitive.
Lastly, the Serpent Elevate kit includes a bubble 'Fat Boy' tank glass to increase the fluid capacity even more from 3.5mL to an all day long lasting 4.5mL, plus a coil leg measurement tool to simplify cutting and ensuring accuracy.
Main Features & Specifications
Adjustable Top Airflow
Top Filling
Fluid Capacity
Straight Glass: 3.5mL
Bubble 'Fat Boy' Glass: 4.5mL
PEEK German Insulator
Dimensions
Diameter: 24mm
Height: 46mm
Connecting Thread: 510
Construction
Stainless Steel
Pyrex Glass
Resin (drip tip)
Contents List
1 x Serpent Elevate RTA
1 x Bubble 'Fat Boy' Glass 4.5mL
2 x Clapton Coils
Framed Staple
(25g+38g*9+28g)+36g N80
ID: 3mm
0.33ohm
40~55W
1 x 510 Drip Tip Adaptor
1 x Extra Drip Tip
1 x Agleted Cotton Strip
1 x Coil Trimming Tool
1 x Spare Parts Set
1 x User Manual
Replacement Parts
Tank Glass
Always 'prime' coil with e-liquid prior to use, 5 minute 'prime & sit' time recommended. Failure to do so may lead to the cotton being burnt within the coil head, this will lead to an unpleasant 'burnt' taste making the coil head unfit for use.
